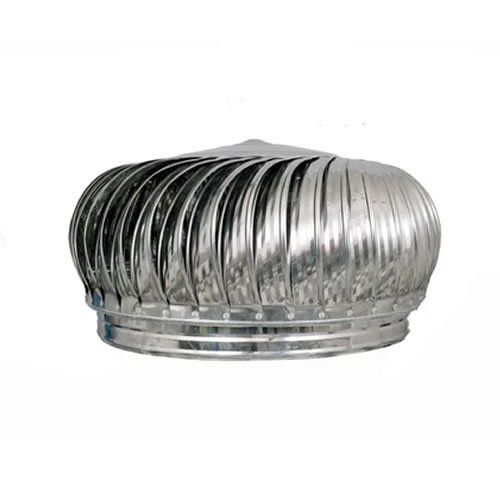

Turbo Air Ventilators

Turbine Roof Vent is not an old concept for Indian industry. It runs on wind power and there is no operating cost because to run Turbine Roof Vent no electricity is required. Its economical and ecological. It can be fitted on industrial sheeting. Turbo Roof Vent is manufactured in Western India by Jalaram Industries, Surat. Its construction is strong and light in weight.

Roof Vent was first introduced in Western part of India by Jalaram Industries. It became a grand success with the industries being electricity saver item. It works on air power and no electricity is consumed. Roof Vent does not make any noise while running as it moves on pivot. Slight breeze is enough to rotate the Roof Vent.

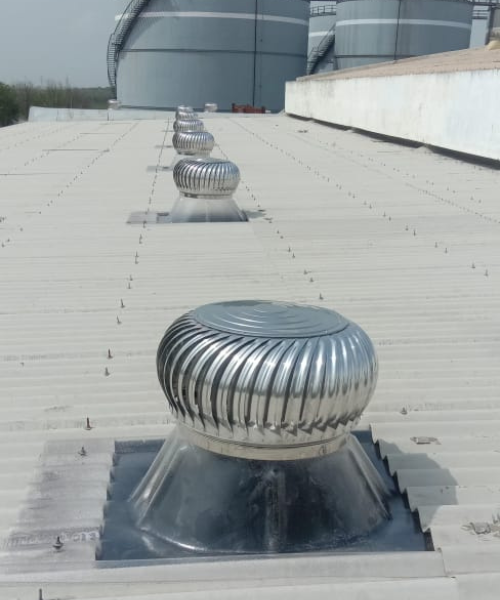

Surat is now known for Roof Turbine as it is made by Jalaram Industries. In Surat. Roof turbine is liked by all the industries where there is generation of bad fumes as it exhausts them without consuming power. Roof Turbine saves energy which in today’s world is the costliest raw material. It is easy to instll and can be fitted to any type of roofing.

DION Color Coated Sheets are excellent use for Roofing and Cladding.

Available Sizes :

Available	24	20	16
Available Make	Aluminium / Stainless Steel	Aluminium / Stainless Steel	Aluminium / Stainless Steel

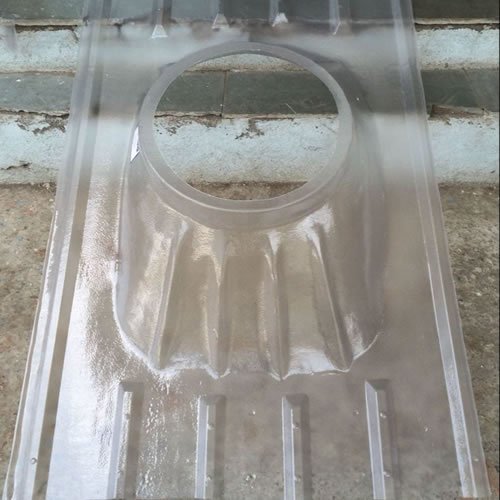

Available Base	Aluminium / FRP	Aluminium / FRP	Aluminium / FRP

The wind influences the performance of the ventilator in two ways

As the Wind approaches and strikes the ventilator, it jumps, creating an area of low pressure on the leeward side of the turbine, causing a continuous extraction of air from the building end
As the turbine rotates, the centripetal forces associated with the rotation fling air outwards from the tips of the vanes. Replacement air is drawn into the throat of the ventilator from the building causing continuous ventilation.

Type of Building	Air changes per Hour
Ware Houses	3-5
Factories and workshops	3-8
Assembly Halls	6-12
Garages	6-12
Toilets	7-12
Laundries	7-15
Poultry Houses	7-25
Heavy Factories	20-40

The Ventilation Time for each area of the Building

Type of building	Timme/Hour	Building	Time/Hour
Machinery	4-15	Textile	3-7
Forming	10-30	Dyeing	10-40
Foundry	10-30	Repairing	10-20
Electroplate	12-20	Washing	10-30
Drying	10-20	Boiler	15-30
Food	3-8	Lab	6-15
Wood	3-8	Pump	5-10
Paper	8-15

Building	Time/Hour	Building	Time/Hour
Library	6-10	Reception Room	4-12
Church	6-10	Toilet	5-10
Classroom	3-8	WC	4-14
Storehouse	3-6	Smoking Room	5-15
Car port	4-10	Restarunt	6-12
Sick Room	2-4	House Room	5-10
Kitchen	7-15	Office	2-5
Rest Room	10	Sterillized Room	8-15

The Ventilating Cube of Metal TG-600

Wind Speed (KM)				3.2			6.4			8
Model	Turbine Dismeter (mm)	Total Diameter (mm)	Room Height (M)	the Ventilating cube per hour (M3)
Temperature Difference				5	10	15	5	10	15	5	10	15
TG-600	720	600	3	1528	1716	1930	2076	2186	2314	2327	2510	2700
			6	1712	1817	1986	2150	2360	2694	2766	2895	2895
			9	1913	2160	2630	2659	3065	2956	3105	3348	3348
			12	2065	2345	2700	2864	2925	3148	3188	3346	3468
